The new Super Heavy Duty two post lift PSEOH-12H is the ideal choice for Commercial grade shops with limited height to service utility vehicles. You also upgrade your weight capacity by adding HD Arms. Call for details!
Features
- 12,000 lbs capacity
- Heavy three-stages arms for cars or trucks.
- Convenient Single-point safety lock release
- Comes with adjustable three height setting heights
- Safety arm restraints automatically keep the arms locked in position
- Self-lubricating UHMW Polyethylene sliders and bronze bushings
- Aircraft style durable cables used for synchronization
- Arm tool trays come standard
- All Pro Series Lifts come with 5-3-2 warranty: 5 years for steel construction, 3 years for hydraulic parts,and 2 years for electrical components.
- A 100% 5 Year Warranty Available when we install, ask for details

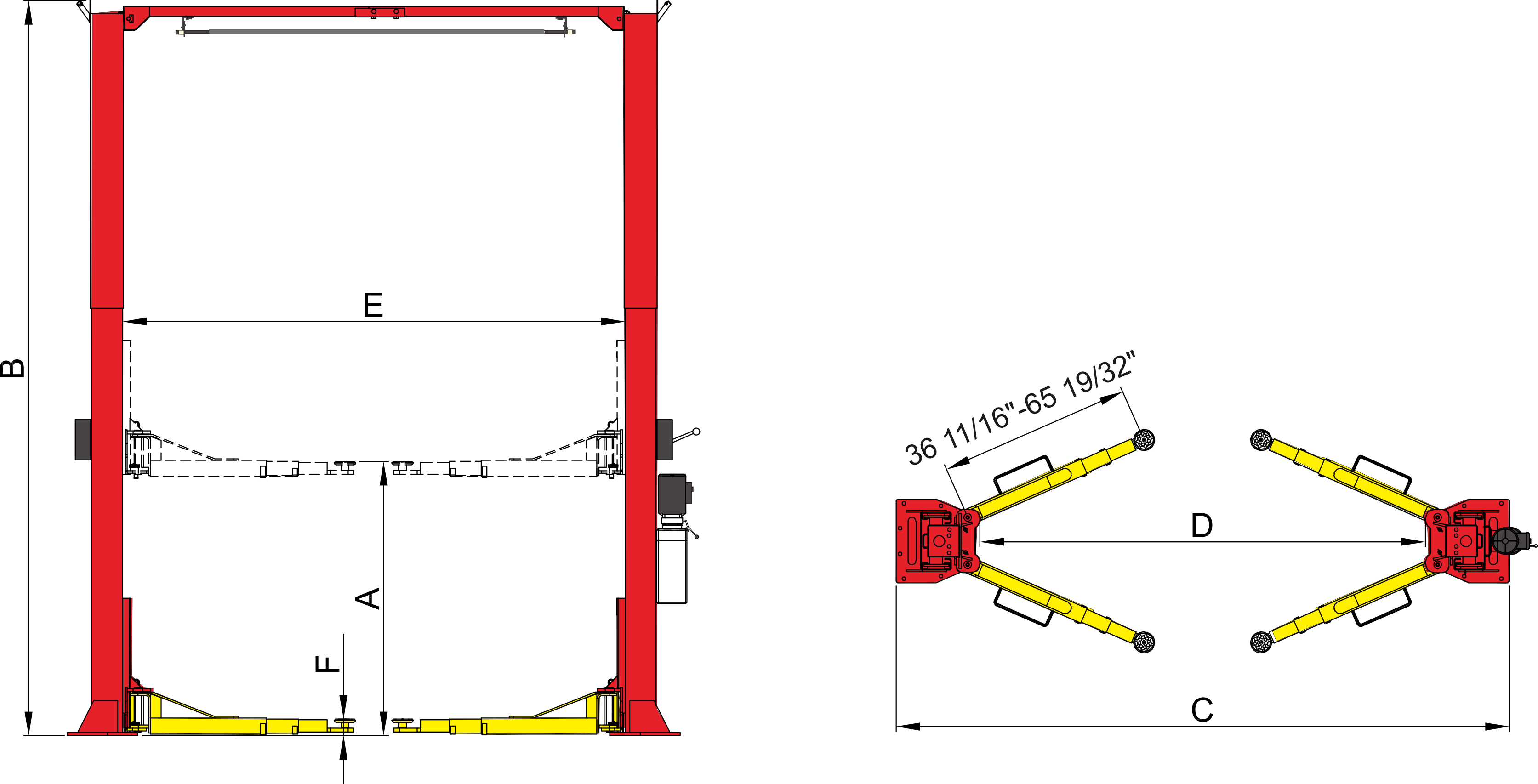

| Model | PSEOH-12H |
|---|---|
| Lifting Capacity | 12,000 lbs (5,443 kg) |
| Lifting Time | 70S |
| Lifting Height (A) | 72 1/2″ ~ 81 1/2″ (1842~2071mm) |
| Overall Height (B) | 143 1/8″/155 1/8″/167 1/8″ (3635/3940/4245mm) |
| Overall Width (C) | 150 3/4″ (3829mm) |
| Drive-Thru Clearance (D) | 109 3/4″ (2787mm) |
| Width Between Columns (E) | 123 1/2″ (3137mm) |
| Minimum Pad Height (F) | 4 1/2″ (115mm) |
| Motor | 2.0HP/220V/60Hz,Single Phase |
| Gross Weight | 2,176 lbs (986 kg) |
Detailed Images

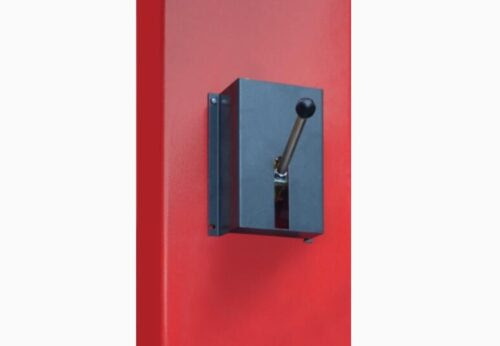

- Easy use Single point safety release.

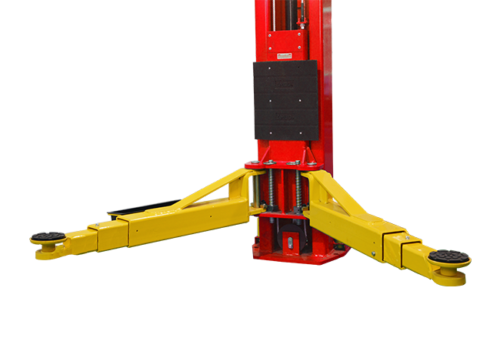

- Heavy three-stages arms for cars or trucks.

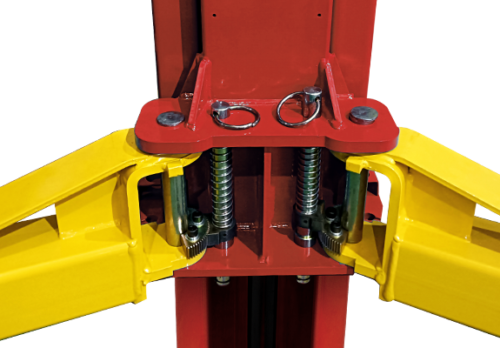

- Heavy automatic arm lock release device.

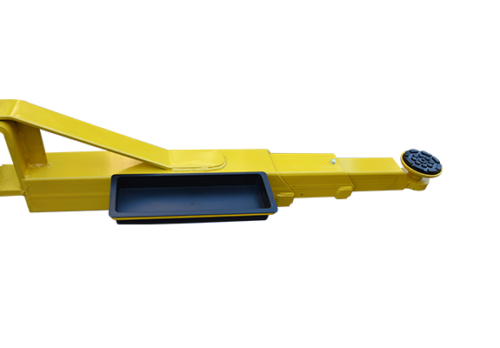

- Comes standard with detachable foot guard and tool tray.

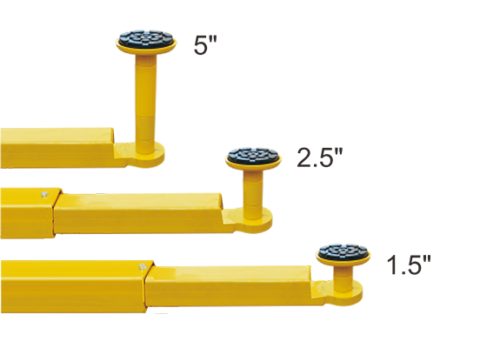

- Comes with stackable rubber pads packaged with 1.5″, 2.5″, 5″ extension adapters.
- Optional Truck adapter. A must for light truck No.: PSE20802. For heavy-duty truck: PSE21103

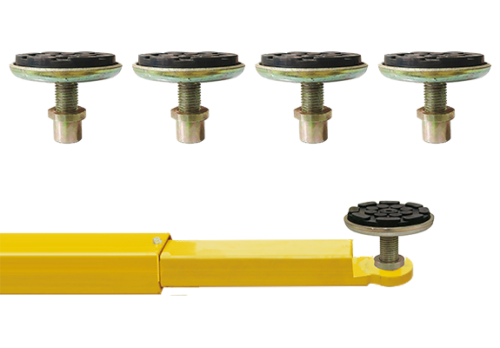

- Optional Screw-up rubber Pad Assembly No.:PSE20803
