PSEBP-1315 Heavy Base Plate Lift
Product Inquiry Form
Please fill out the form below to inquire about this product.
APPLY NOW: We Offer Financing Plans as Low as $49/Month
Couldn't load pickup availability
Speak to a Team Member Now About this Product
Call Us: 317-736-5094
Emergency Service: 317-833-0989
Toll Free number: 888-736-5094
Email us: Sales@dwipower.com
.
All Equipment sold through Pro-Series Equipment is Distributed by DWI Power Systems!
PRO SERIES Equipment BP Series Base plate two post 1315 adds 15,000 LB arms and a BASE PLATE kit to achieve the maximum lifting weight possible for our base plates. The rugged PSEBP-1315 can lift commercial vehicles up to 13,000 lbs. and is designed with no overhead obstructions for low-ceiling professionals to increase headroom. We achieve this by adding the heavy 15K arms and heavy-duty
| Model | PSEBP-1315 |
|---|---|
| Lifting Capacity | 13,000 lbs (5,443 kg) THIS IS A KIT BP12+HD Arms+Base plate Kit |
| Lifting Time | 68S |
| Lifting Height (A) | 73 1/4″ ~ 82 1/4″ (1860~2089mm) |
| Overall Height (B) | 122 1/2″ (3110mm) |
| Overall Width (C) | 145 3/8″ / 150 3/4″ (3692 / 3829mm) |
| Drive-Thru Clearance (D) | 104 1/2″/ 109 7/8″ (2653 / 2790mm) |
| Width Between Columns (E) | 118 1/8″/ 123 1/2″ (3000 / 3137mm) |
| Minimum Pad Height (F) | 4 3/4″” (120mm) |
| Motor | 2.0HP/220V/60HZ,Single Phase |
| Gross Weight |
2,250 lbs (975 kg) |
Detailed Images
-
Easy use Single point safety release.
-

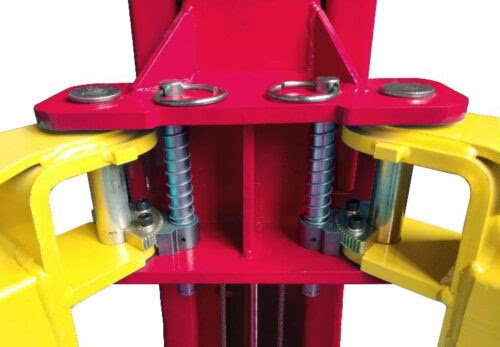

Heavy automatic arm lock release device.

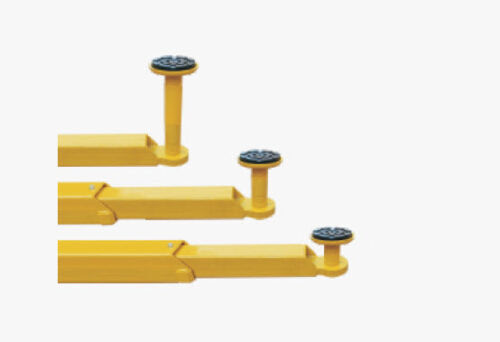

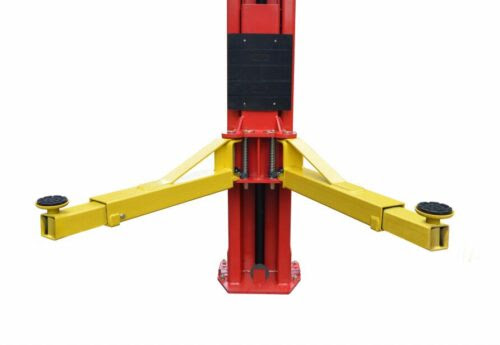

- HEAVY two-stages arms are added in this Kit. Designed for heavy-duty trucks.
-
Comes with stackable rubber pads packaged with 1.5″, 2.5″, 5″ extension adapters.
- Optional Truck adapter. For light truck No.: PSE20802. For heavy-duty truck: PSE21103

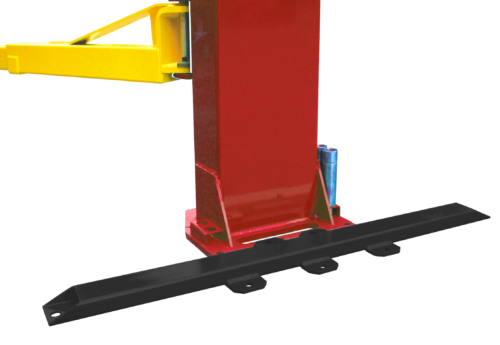

- Added in this Kit is a Base Plate Kit No.21501.
