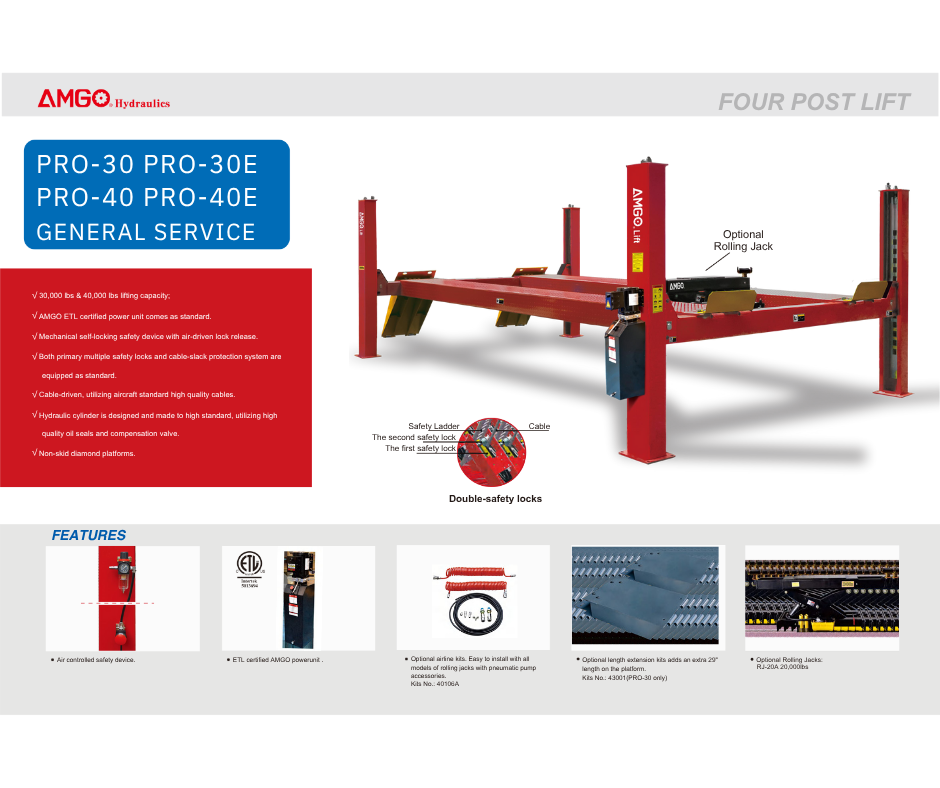

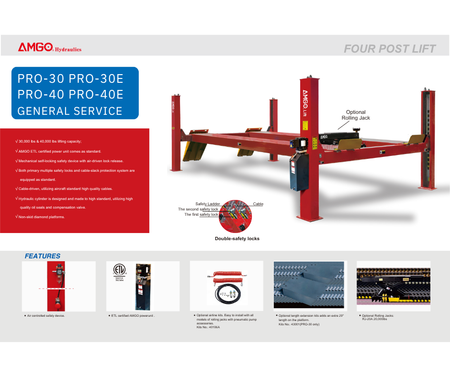

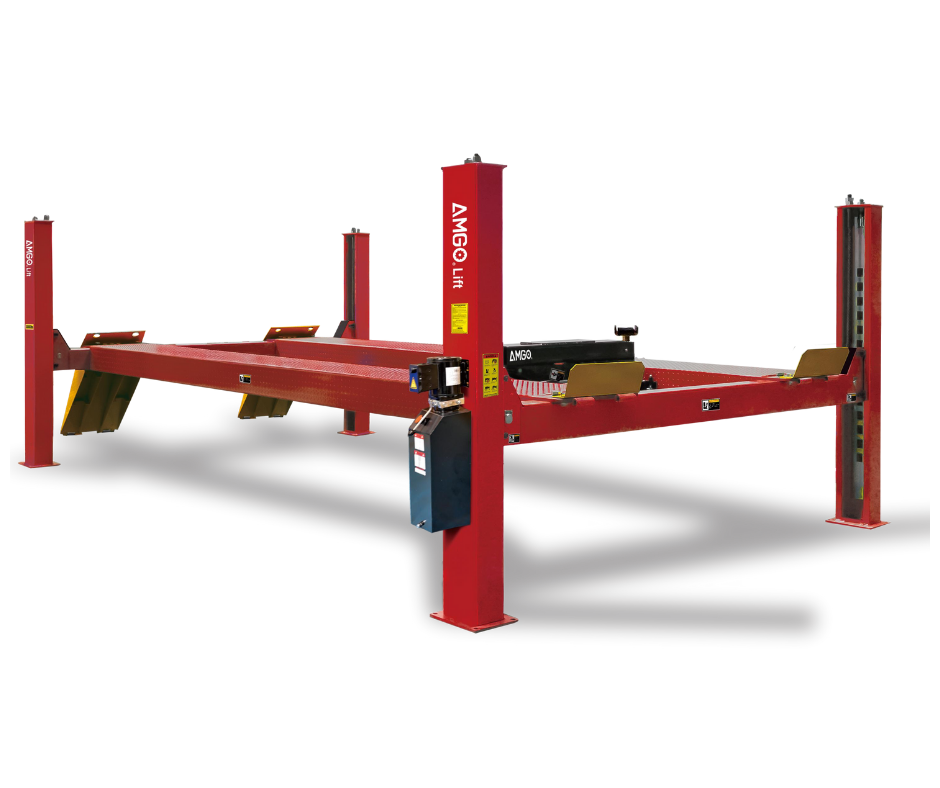

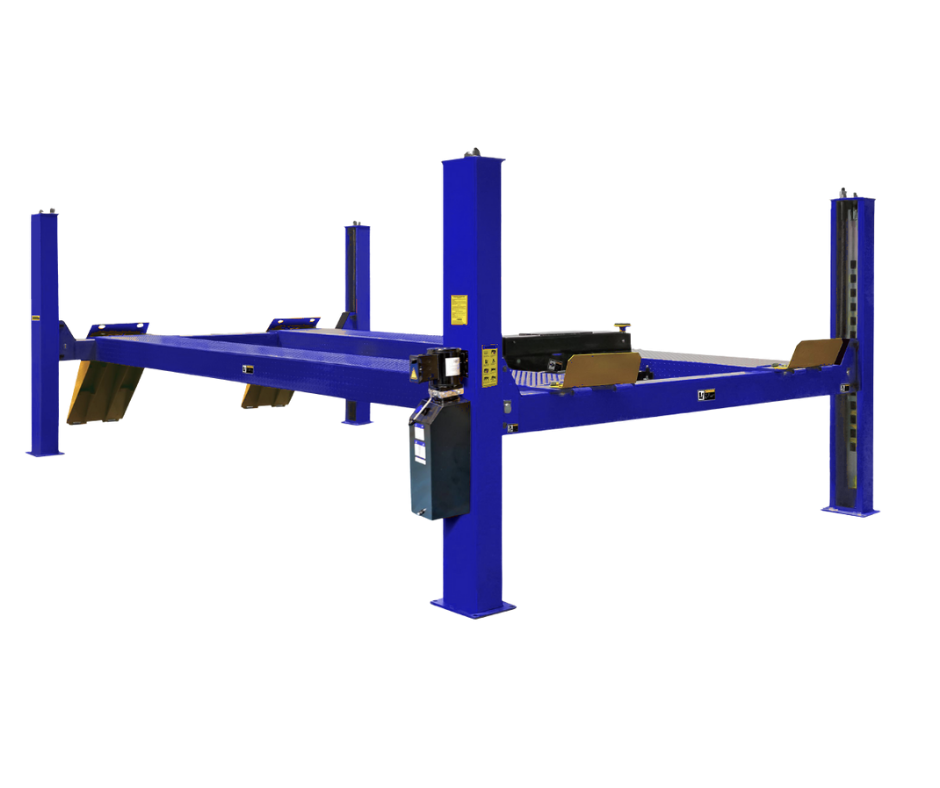

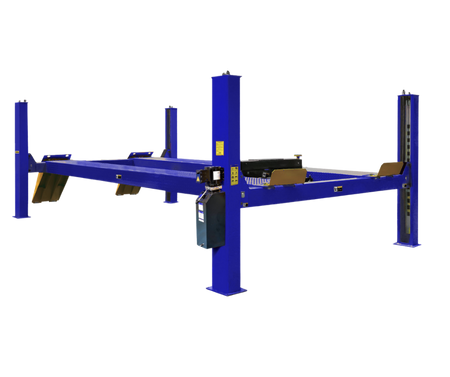

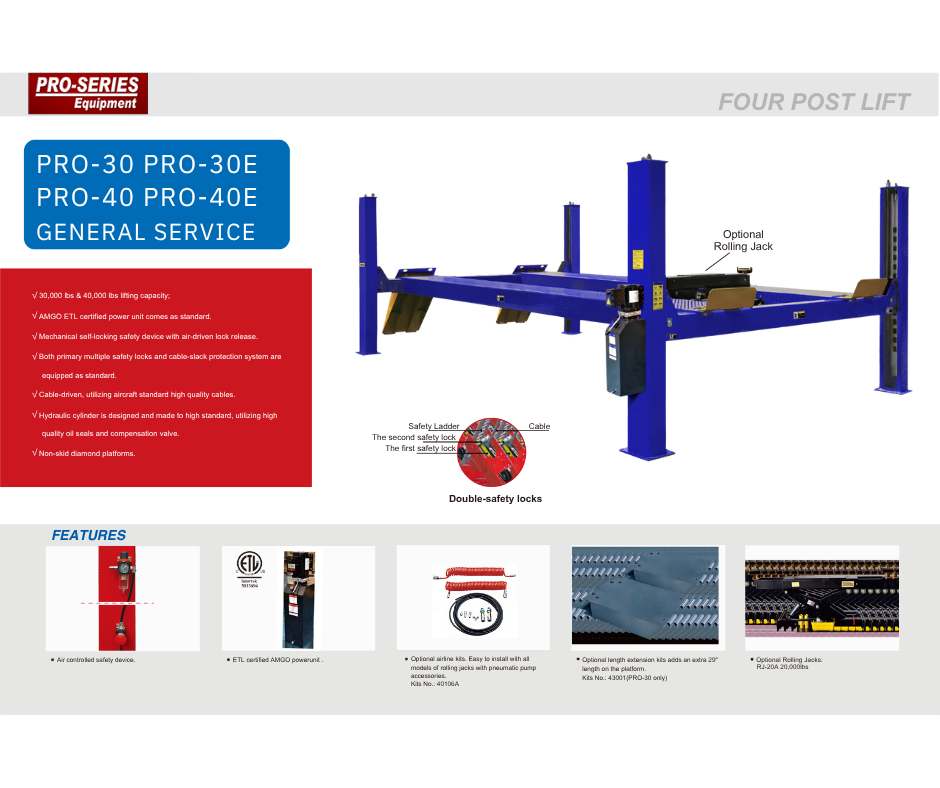

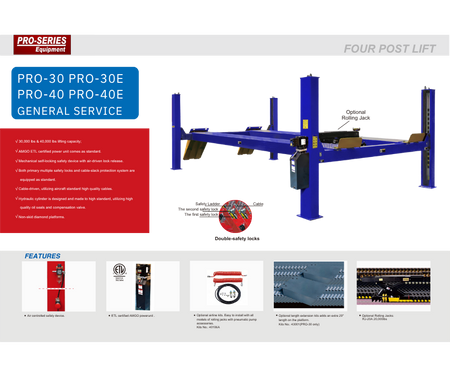

AMGO PRO-30 / PRO-40 Heavy-Duty 4-Post Truck Lifts

• 30,000–40,000 lb capacity four-post lifts built for HD service bays

• ETL-certified power unit, mechanical self-locking + air lock release

• Primary multi-position safety locks + cable-slack protection

• Aircraft-grade cables, high-spec hydraulic cylinder & oil seals

• Non-skid diamond platforms; optional rolling jacks (RJ-20A, 20,000 lb)

Heavy Duty Lift Description

Meet the workhorse of your truck shop. The AMGO PRO series heavy-duty four-post lifts deliver serious capacity, rock-solid stability, and service-bay-friendly ergonomics for Class-5–7 trucks, buses, RVs, and utility fleets. Choose 30,000 lb (PRO-30 / PRO-30E) or step up to 40,000 lb (PRO-40 / PRO-40E) to handle your heaviest vehicles with confidence. Each lift comes equipped with an ETL-certified power unit, mechanical self-locking system with air-driven lock release, primary multi-position safety locks, and a cable-slack protection system—engineered to keep techs safe and productive shift after shift. Cable-driven architecture with aircraft-standard, high-quality cables and a high-spec hydraulic cylinder (premium oil seals + compensation valve) keep operation smooth and consistent under load. Non-skid diamond platforms add confidence when driving on and off, even in wet shop conditions.

Need more runway length? The PRO-30 supports an optional extension kit adding ~29" to the platforms (Kit No. 43001) for long-wheelbase trucks and RVs. Add RJ-20A pneumatic-hydraulic rolling jacks (20,000 lb each) to lift axles or wheels clear for brakes, suspension, and tire service without moving the vehicle off the runways.

What’s Included

• Four-post lift assembly with diamond runways

• ETL-certified AMGO power unit (220V, single phase)

• Mechanical self-locking system with air-driven lock release

• Primary multi-position safety locks + cable-slack protection

Popular Options

• RJ-20A Rolling Jack, 20,000 lb (pneumatic-hydraulic)

• Airline kit for pneumatic rolling jacks (Kit No. 40106A)

• PRO-30 Platform Length Extension +29" (Kit No. 43001)

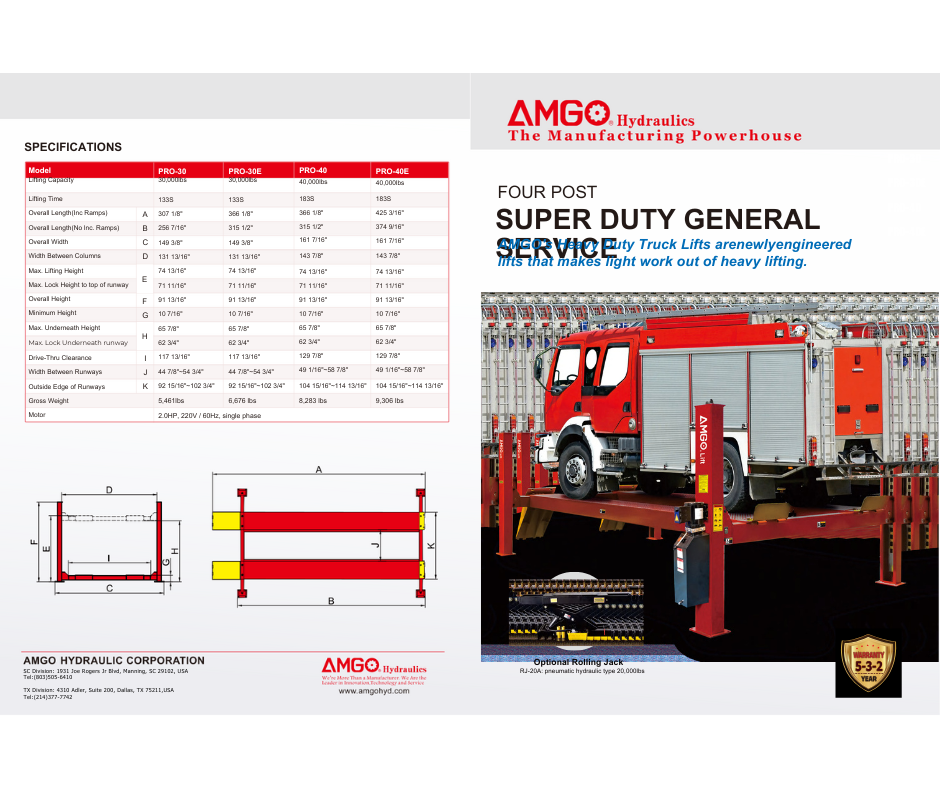

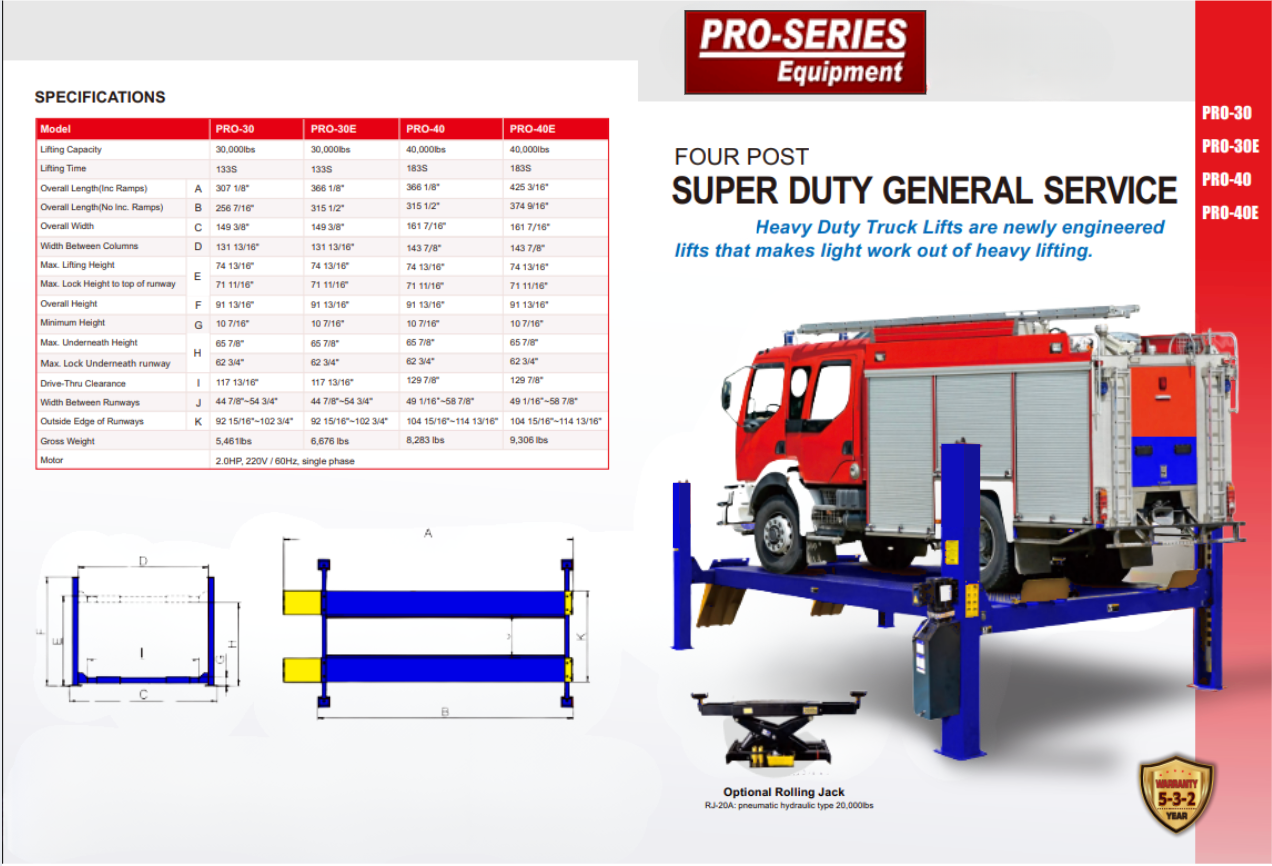

Key Specs ( By Model )

PRO-30 (30,000 lb)
Overall length incl. ramps: 307 1/8" | No ramps: 256 7/16" | Overall width: 149 3/8" | Between columns: 131 13/16" | Max lifting height: 74 13/16" | Overall height: 91 13/16" | Drive-thru: 117 13/16" | Gross weight: 5,461 lb | Motor: 2.0 HP, 220V/60Hz, single-phase.

PRO-30E (30,000 lb, extended)
Overall length incl. ramps: 366 1/8" | No ramps: 315 1/2" | Width/height metrics match PRO-30 | Gross weight: 6,676 lb.

PRO-40 (40,000 lb)
Overall length incl. ramps: 366 1/8" | No ramps: 315 1/2" | Overall width: 161 7/16" | Between columns: 143 7/8" | Max lifting height: 74 13/16" | Overall height: 91 13/16" | Drive-thru: 129 7/8" | Gross weight: 8,283 lb.

PRO-40E (40,000 lb, extended)
Overall length incl. ramps: 425 3/16" | No ramps: 374 9/16" | Width/height metrics match PRO-40 | Gross weight: 9,306 lb.

Safety systems, power unit certification, cable spec, cylinder construction, and platform surface are consistent across the PRO-30/30E/40/40E family.

Why Shops Choose This Lift

• Heavy-duty range: Configure 30k–40k to match your fleet mix, with extended-runway “E” models for long wheelbases.

• Tech-first safety: Dual-lock architecture + cable-slack protection minimizes risk during rise/lower cycles.

• Service versatility: Add 20k rolling jacks to do wheels-free work right on the runways.

• Built to last: Aircraft-grade cables and high-spec hydraulics stand up to daily, commercial use.

Shipping & Installation (PSE Best Practices)

• Ships via LTL freight on oversized pallets. Confirm 53' trailer access and a forklift at delivery (8,000+ lb recommended for PRO-40E).

• Electrical: 220V, single-phase dedicated circuit by a licensed electrician.

• Concrete: Level slab, commercial-grade thickness; follow AMGO/PSE anchoring specs (consult your installer).

• Pro install available nationwide. Call 1-800-708-3126 for a quote.
